PRODUCT RANGE
H-Frame
Prop Pipe Support
Props (European Type)
Push Pull Props

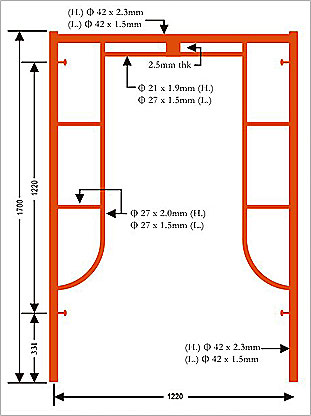

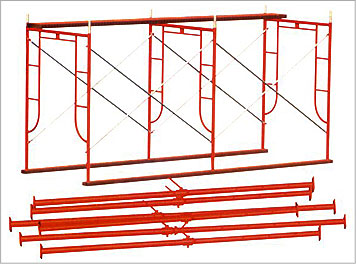

H-Frame
Jack & Base Head
K-Lock
K-Stage
Solider System
Scaffoldings Accessories









Toggle Pin

Connecting Pin
A- Extended Height: 3900
Close Heigh: 2400
B- Extended Height: 4500
Close Heigh: 2800
Dimension of Pipe (mm) Dimension of Pipe (mm)
Inner Pipe: ø 48.3 x 2.1 Inner Pipe: ø 48.3 x 2.5
Outer Pipe: ø 60.3 x 2.1 Outer Pipe: ø 60.3 x 2.0
Inner Pipe Length: 2400 Inner Pipe Length: 2800

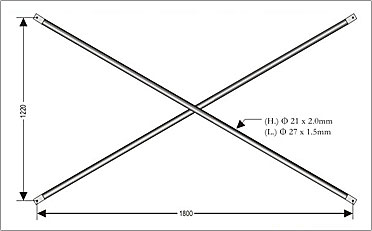

Cross Brace
