K-Stage System Scaffolding (European Type)

It comprises of a primary head that remains in contact with the concrete slab and a secondary head which permits early striking. The smoothly operated drophead fits on AMA lock scaffoldings and enables the removal of in fills and beams in just 3-4 days of pouring, keeping the support intact. While they have been specifically designed to keep beams from being accidentally dislodged they also provide excellent load bearing capacity of 40KN.
It is used in conjunction with the universal jack at either the top or bottom of the structure.
Height(mm)
Weight (kg.)
110
1.4
Designed to provide height adjustment to structure, by fitting onto the universal jack, when constructing with timber, aluminum or steel (singal / double) beams of 75mm width.

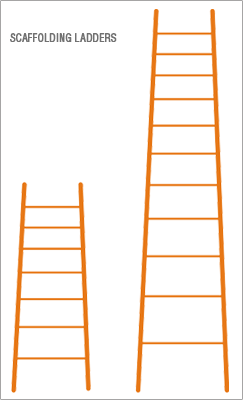

Scaffolding Ladders
Steel Ladders are available in sizes of 2m, 3m, 4m and 6m, wherein uprights are 430 mm apart and 21 mm rungs at 280 mm centers' in full compliance with ARMACO GI 8.001
