The ledger is used to connect the standard in a longitudinal direction. It is made from scaffold tube with wedge 'Banana Type' fixing at each end which fits in the 'V' locating lugs on the standard. The ledger is also used as a guardrail.
Description
Weight (kg.)
8'0" Ledger
11.0
6'0" Ledger
8.3
4'2" Ledger
5.9
2'8" Ledger
3.9
2'6"Ledger
3.7
Transom is either made of back-to-back anglev or T-shaped profile with the same fixing device on each end as the ledger. They are used to carry 3 or 5 numbers of steel or trimber battens and toeboard.
Description
Weight (kg.)
4'2" Transom
9.6
2'8" Transom
5.9
2'6" Transom
5.5

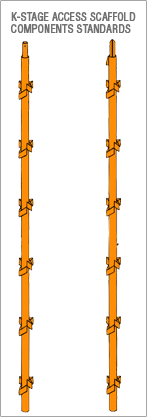

The standard is the vertical member of the scaffold with a spigot (either round or box type) at one end for accurate alignment. A series of 'V' locating lugs are welded on the tube for the attachment of ledgers, transoms, and auxiliary components. Open ended standards and loose spigots are also available.
Description
Weight (kg.)
9'9" Standard
17.4
8'1.5" Standard
15.0
6'6" Standard
12.3
4'10.5" Standard
9.4
3'3" Standard
6.4
1'7.5" Standard
3.6
