Props [ European type}



Multitude of Uses
Falsework support: Formwork for reinforced concrete floors & deams.
Ranking Shores: To brace formwork for columns, walls & stairs.
Temporary Support: For repair work, canopies, lintels & the like.

Simple & innovative construction
Prop consists of: Inner-tube with welded top-plate. Outer-tube with selded base-plate. Nut & Handle. Chainless prop pin.
Available in 5 sizes covering a range from 1050mm to 4900mm with axial compression working load limits ranging from 7kN to 42.5kN. (1kN= 20kg)
Spare parts are available for all components & sizes.
Code: JK-101



Chain Less Prop Pin
High tensile pin with solid steel loop.
No tangled or lost chains.
Reduces loss of pins on the job.
Code: JK-102

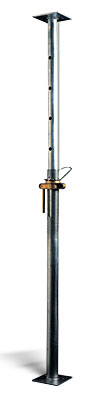

Adjustable Prop
Outer Pipe 60.3 mm x 2.1 mm
Inner Pipe 48.3 mm x 2.1 mm
Code
Weight
JK-115
1.12 kg
