Standard Type I Prop Pipe Support
Maximum Height : 3,900 mm
Minimum Height : 2,400 mm
Inner Tube : OD 48.6 mmx WT 2.1 mm
Outer Tube : OD 60.5 mmx WT 2.1 mm
Screw : 60-50 x 3.3 mm
Adjustable Collar : FCD 40 mm
Pin Adjustment : 125 mm
Handle Adjustment : 125 mm
No of Hole of Adjust : 12 Holes
Distance between Hole to Hole : 120mm
Color : Orange
Cover Type Top & Base Plate : 120 x 120 x 5 (TH) mm
Safe Working Load : 1500 Kgs.
Total Weight of Prop : 12.5 Kgs.

A. Base Plate (120 x 120 x 5 mm)
B. Inner Tube (48.6 x 2.1 mm)
C. Threaded Part & Nut
D. Outer Tube (60.5 x 2.1 mm)

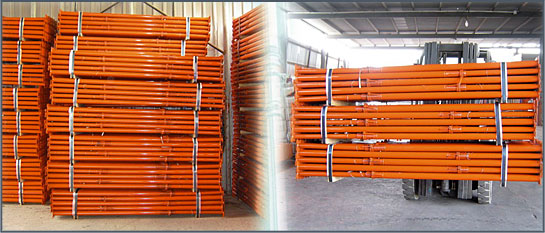

Packing System
