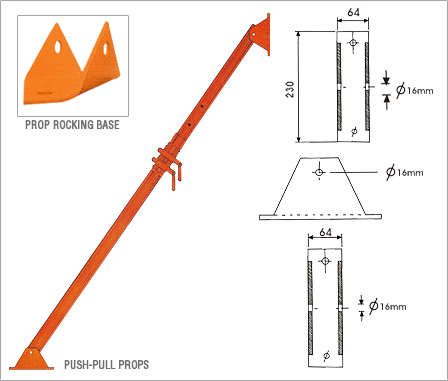

Push-Pull Props
Push-Pull Props are designed for use wherever an adjustable inclined struts is required. The push-pull prop is generally used in the construction/erection of pre-cast units and for plumbing of column and wall formwork. However they are also suitable for other industrial applications.

Versatile Light Weight Time-Saving
:: Simple to use.
:: Extremely light to handle.
:: Simple, speedy adjustment.
:: Available in a wide range of size. (See chart blow)
:: Struts can be connected if desired using standard tube and fitting.

MODEL
LD / 2mm
MD / 3mm
Tubes
HD/3.6/
4mm tubes
HD/3.6/
4mm tubes
Minimum Working Rang (m)
2.59
2.59
2.59
3.20
Maximum Working Rang (m)
3.90
3.90
3.90
4.88
Working (Adjustable) Rang (m)
1.30
1.30
1.30
1.68
Weight (kg) approx.s
12
18
24
30
